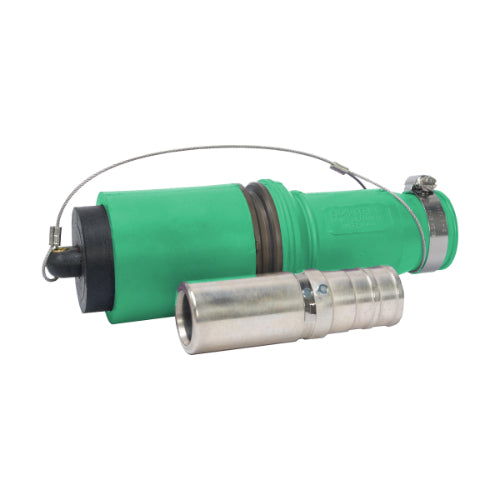

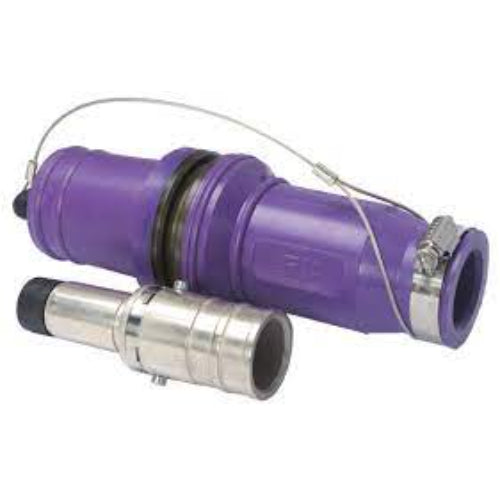

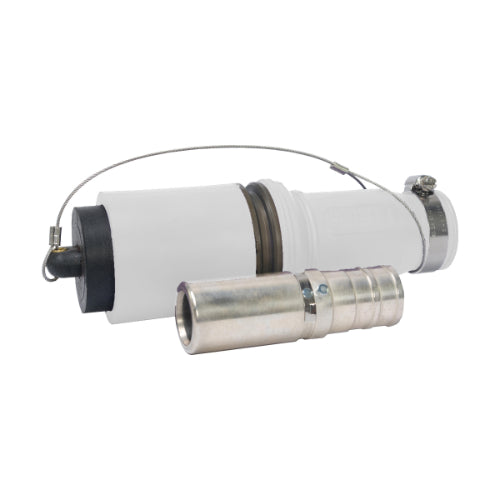

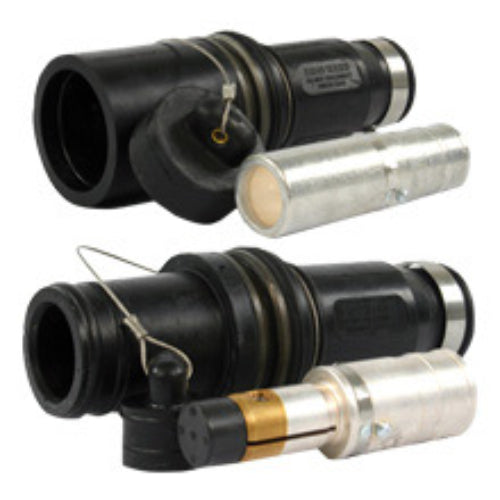

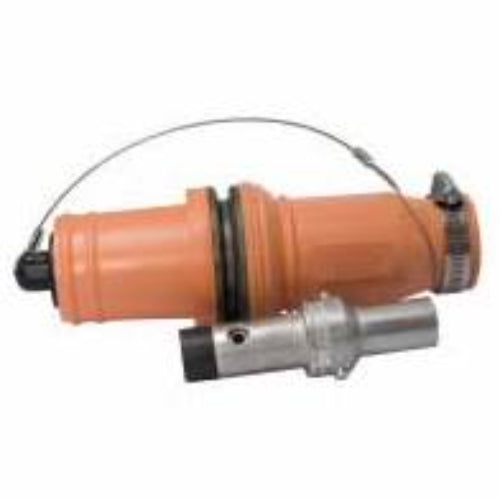

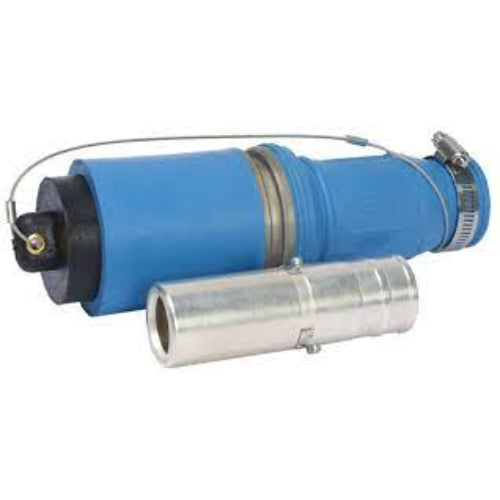

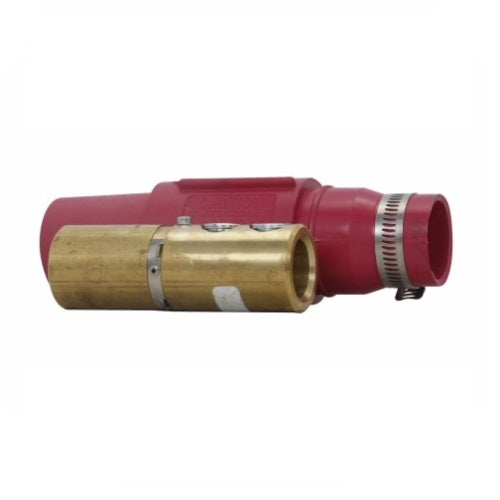

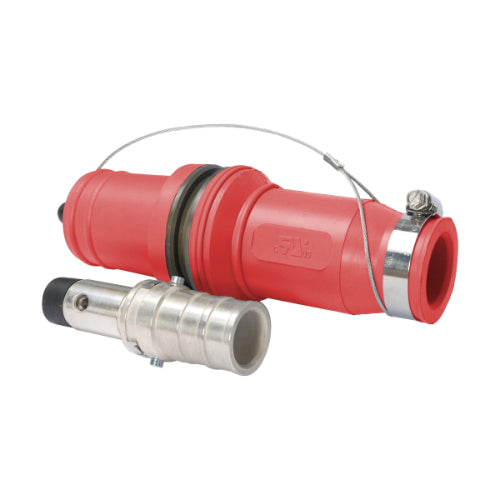

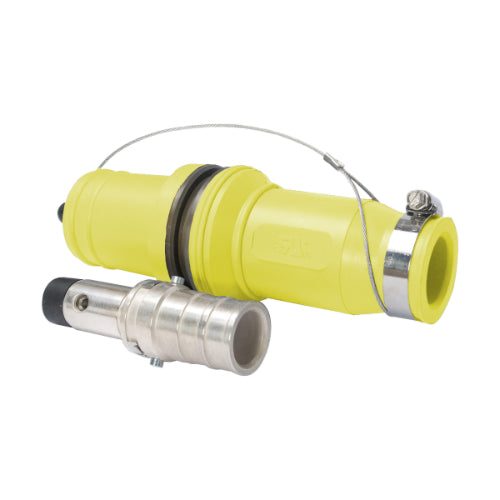

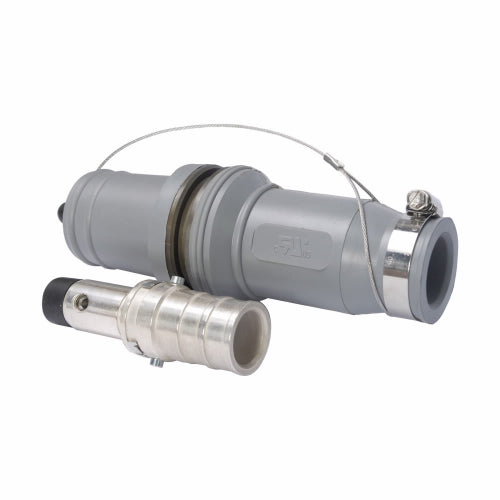

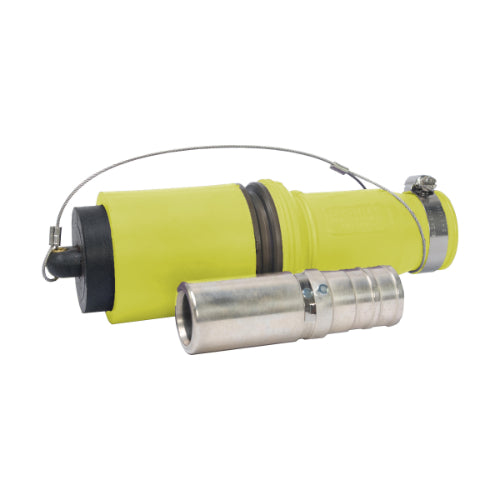

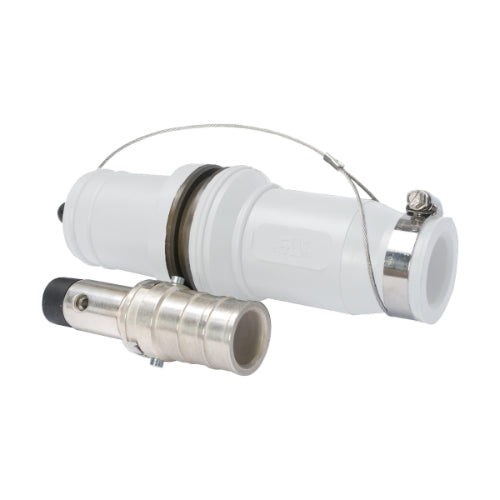

Roughneck E1049 Series Male and Female Standard Connectors 535 MCM - Heavy Duty Electrical Connectors for Industrial and Commercial Wiring Applications

These Roughneck™ E1049 series connectors are made rugged and hardy, ideal for land based drilling applications. They are designed to withstand heavy abuse all the while maintaining a safe and secure connection.

Benefits and Features

• Contacts machined from solid copper and specially plated for corrosion resistance and superior conductivity
• Color-coded rubber insulator provides quick visual identification of circuit and phase connections
• Watertight insulators provide maximum protection
• Male and female contacts are assembled to cable with standard crimp tools
• Drive pins on contacts securely lock it to the insulator
• Male contacts are equipped with safe front insulated tip

• Cable Size: 535 MCM
• Voltage Rating: Up to 898A continuous
• Ampacity rating at 40° ambient: 724 Amps at 90°C - 898 Amps at 125°C
• Material - Insulator: Rubber
• Material – Receptacle Shell: epoxy powder coated aluminum alloy
• Material – Hardware: Stainless Steel
• Material – Contact: Copper
