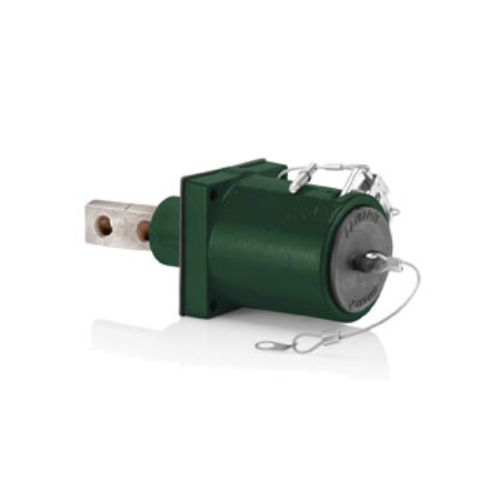

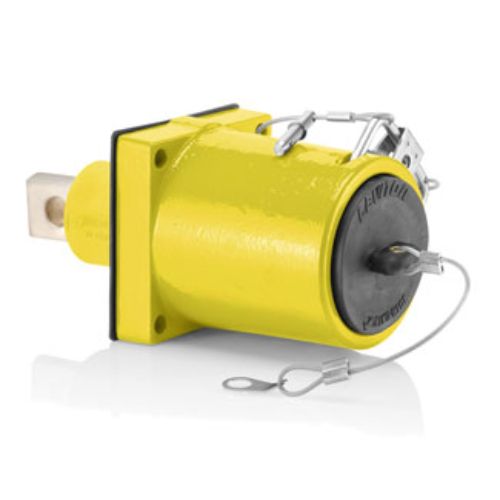

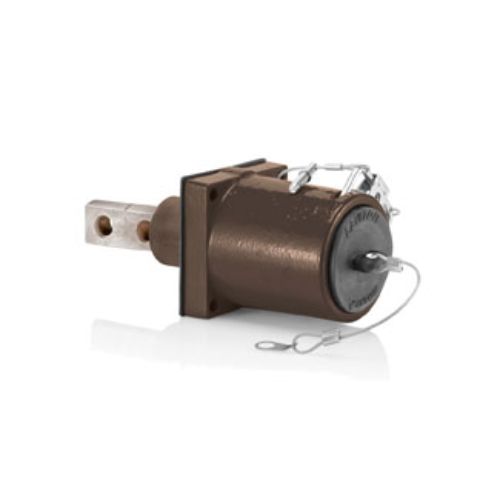

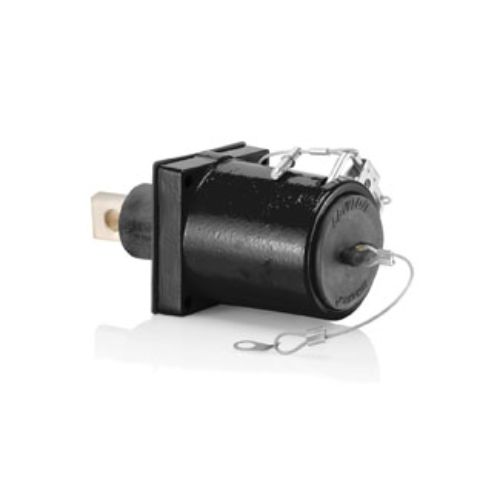

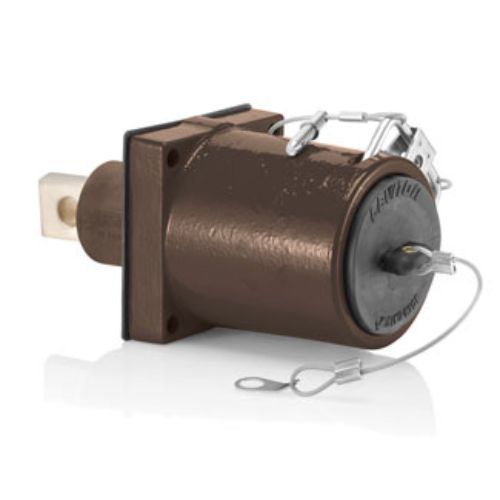

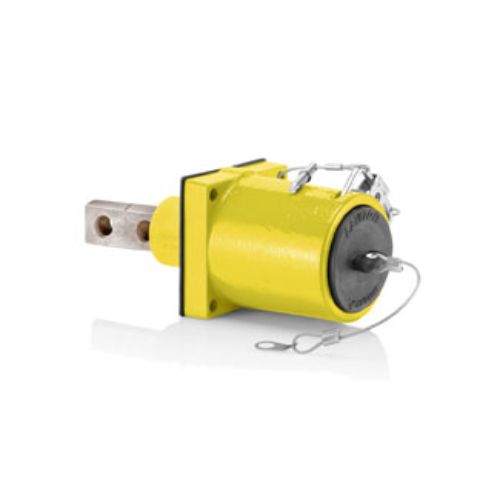

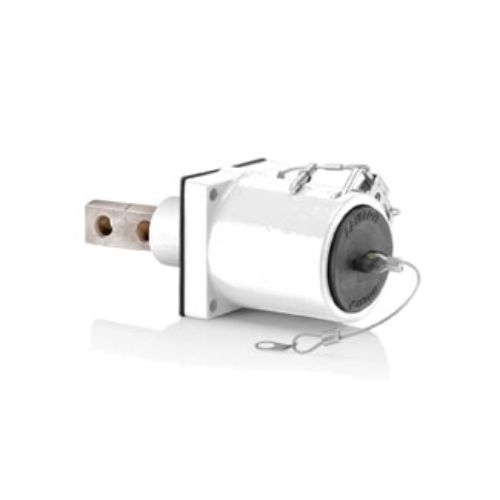

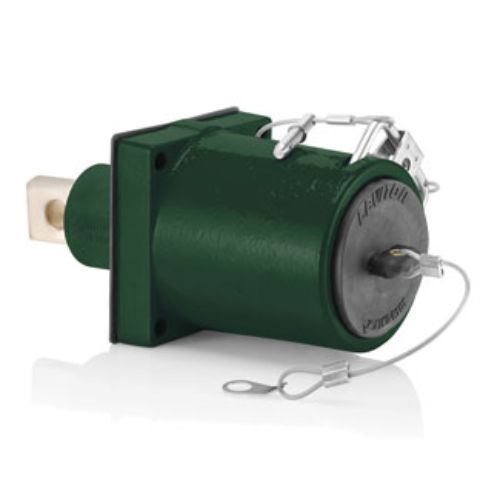

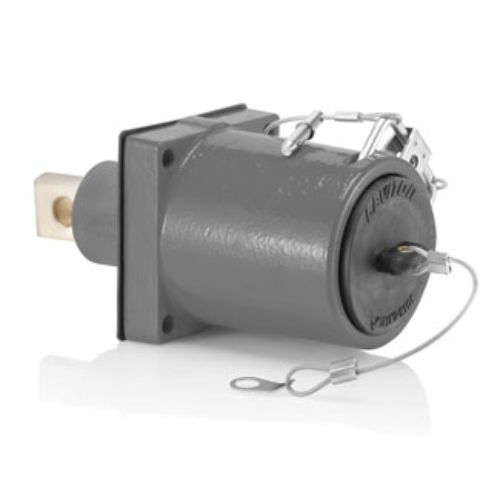

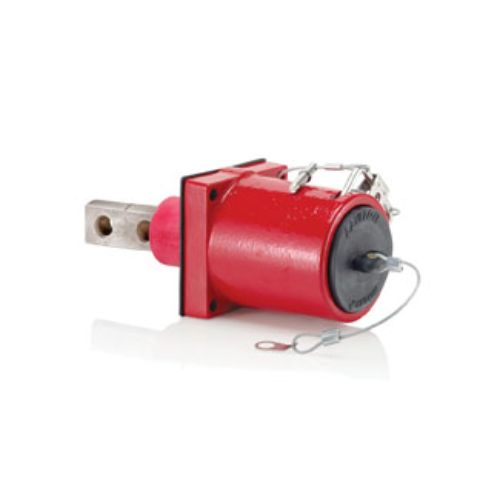

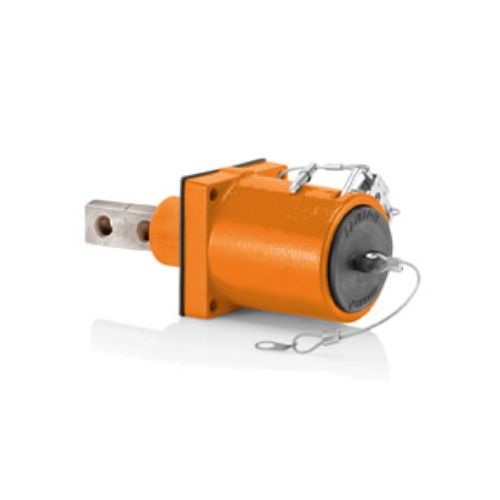

49 Series Panel Mount Receptacles - Durable Electrical Connectors for Industrial & Marine Applications | Waterproof & Secure Panel Mounting Solutions for Harsh Environments

Application: These are designed for use in high-amperage power generation applications like Land-Based Oil Drilling Rigs.

• Specifically they are designed to deliver up to 1000 V (AC or DC) and up to 1, 135 Amps
• These receptacles offer continuous power under extreme conditions with cable range from 313 MCM to 777 MCM
• Both the male and female receptacles are ideal as replacements because they can mate with other manufacturers high-amperage single pole connectors

Features:

• Housing of the receptacle is made to be strong, durable and resistant
• Insulator of bus bar is made of molded thermoplastic vulcanizate (TPV)
• TPV insulation resists fading and cracking offering a longer service life
• TPV bus bar insulator has thermal stability range -76° to 275°F
• The gasket housing is made of rubber
• Housing is protected by cast aluminum powder coated metal housing
• TPV dust cap to protects the receptacle from dust contamination and exposure when they are disconnected
• Receptacle connection and plugin is reliable
• Stainless steel standard clevis bracket to secure the plug into the receptacle clevis
• The stainless steel clevis sits at 45° angle so that you can gang multiple receptacles in close proximity (as close as ¼”)
• Detent pin allows clevis pin to stay secure and attached whether open or closed
• Features single hole or double hole bus bar
•  Environmental Features:
• The TPV has no lead added to it as is fully recyclable
• The receptacles can operate continuously at a minimum and maximum continuous temperature of -76° to 275°F
• CE Certified, cURus recognized components
