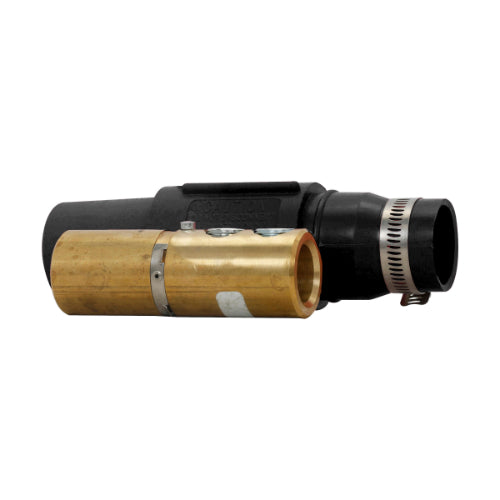

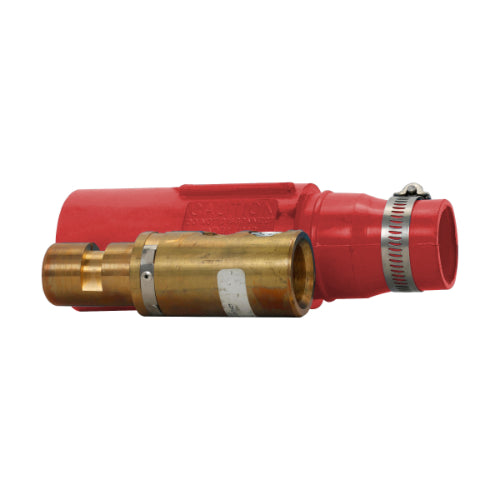

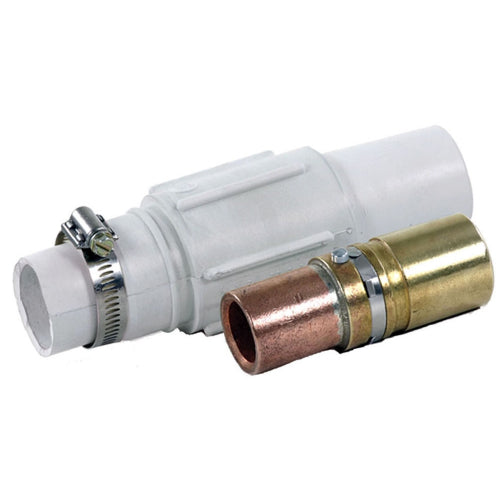

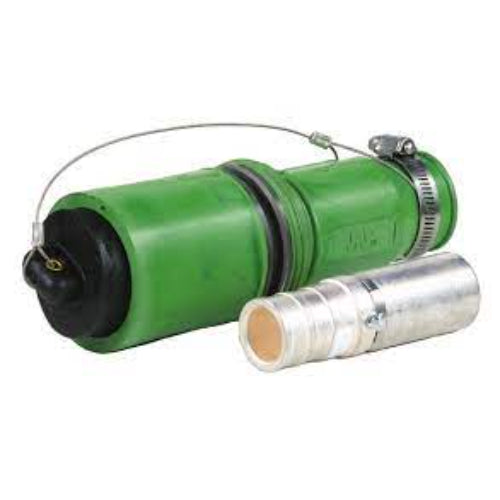

350 500 MCM Double Set Screw Non-Vulcanized Cable Plugs - Heavy Duty Electrical Connectors for Industrial and Utility Power Distribution Systems

This series of Cam-Lok™ connectors J series are safer and stronger that traditional connector and wiring options. This series of cam-loks are made with integrated watertight insulators and feature a strain relief system.

Benefits and Features

• The watertight rubber insulators are molded from color-fast material, color-coded for easy phase identification
• The locking mechanism is a double cam principle that provides a positive, vibration-proof connection
• The locked contacts will withstand a pulling force of 1,000lbs
• Turning the contact 1/3 assures a high pressure contact approaching 600lbs per sq. in. providing minimum resistance
• The connectors are self-compensating for wear
• Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
• Non-metallic retaining screw provides safe, strong and reliable contact retention
• The retaining screw snaps back into place to prevent loss
• The cam-lock plugs and connectors are easily assembled with standard tools
• These J-series non-vulcanized plugs have a cable size of 350-500 MCM
• E-Z align drive pin increases torque and longitudinal strength 300%
• Double set screw termination for added strength

• Cable Size: 350-500 MCM
• Voltage Rating: 600 volts
• Amperage: Up to 545 Amps continuous
• NEMA 3R
• Material: Rubber Insulator
• Temperature Rating: operating ambient: -40°C to 105°C
• NEMA 3R
• Certifications: Listed to UL1691, Listed to CSA C22.2 No.1691-12, CSA certified to C22.2, No. 182.3 LR13963

• Color options: black, red, green, white, blue, brown, orange, yellow
