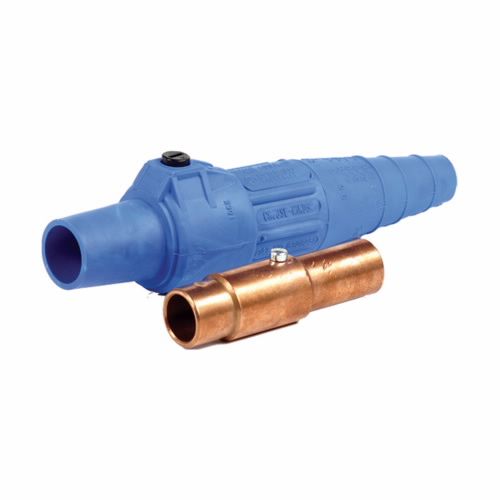

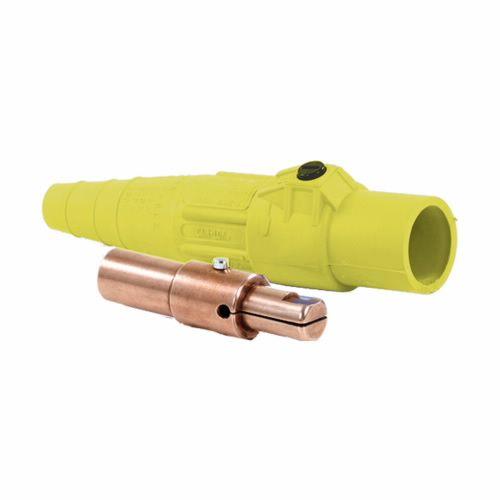

Cam LoK J Series E Z1016 Crimp Plugs for 3/0 & 4/0 Cable Size | Electrical Connectors for Industrial Power Distribution & Heavy-Duty Wiring

Staying connected is critical for any business. That why having the right tools is so important. This set of Cam-Lok J series connectors are the right tools. Designed for use in heavy duty demanding environments, these connectors will provide power for portable applications.

Applications
These plugs are ideal for use at

• Fares/events
• Concerts and film sets
• Entertainment applications
• Motors and generators

• This connectors series is insulated
• The plugs are shatter crack resistant and water tight
• They are heat, weather, ozone, oil and abrasion resistant
• The watertight rubber insulators are molded from color-fast material, color-coded for easy phase identification
• The locking mechanism is a double cam principle that provides a positive, vibration-proof connection
• The locked contacts will withstand a pulling force of 1,000lbs
• Turning the contact 1/3 assures a high pressure contact approaching 600lbs per sq. in. providing minimum resistance
• The connectors are self-compensating for wear
• Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
•  Non-metallic retaining screw provides safe, strong and reliable contact retention
• The retaining screw snaps back into place to prevent loss
• The cam-lock plugs and connectors are easily assembled with standard tools
• These J-series non-vulcanized plugs have a cable size of 350-500 MCM
•  E-Z align drive pin increases torque and longitudinal strength 300%
• Double set screw termination for added strength
• Recessed contacts protected by insulating jacket that extends beyond contact ends for safety.
• Integrated strain relief system features a retaining wire that prevents cable jacket pull-away and bare conductor exposure.
• Plugs feature a high-strength, molded-in-place locking ring to capture and secure the insulator to the contact.

• Cable Size: 3/0 – 4/0
• Voltage Rating: 600V AC/DC
• Amperage Rating: Up to 400A continuous
• Temperature Ratings: -40°C to 105°C
• NEMA 3R

• MALE or FEMALE in Black, Red, Green, White, Blue, Brown, Orange, Yellow
