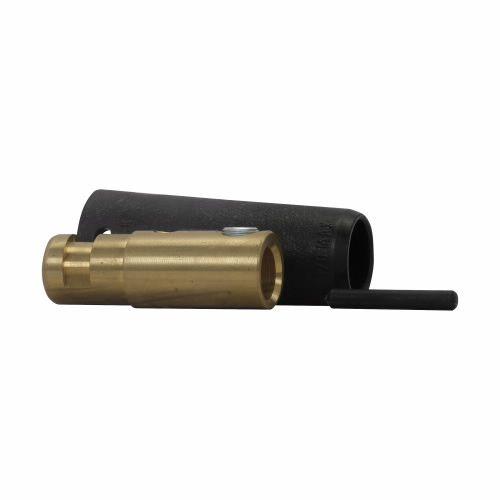

F Series E1012 Cam Lock Set Screw Plugs - Secure Fastening for Industrial Equipment, Machinery, and DIY Projects

This series of Cam-Lok™ connectors are made for use in harsh environments and heavy duty operations. The plug and receptacles are ideal of industrial welding application, heavy duty construction, and mining or manufacturing. They are also able to withstand the heat treating applications. Use the plugs for safe and efficient power distribution.

Benefits and Features

• The plugs are insulated for safety with reinforced thermoplastic or epoxy or watertight elastomeric.
• The locking mechanism is a double cam principle that provides a positive, vibration-proof connection
• The locked contacts will withstand a pulling force of 1,000lbs
• Turning the contact 1/3 assures a high pressure contact approaching 600lbs per sq. in. providing minimum resistance
• The connectors are self-compensating for wear
• Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
• Thermoplastic insulators molded from colorfast material, color coded for easy identification
• Accepts a wide range of cable sizes.

• Set Screw
• Amperage: Up to 315A Continuous, 550 Intermittent
• Voltage Rating: 120 V/AC
• NEMA 1

• #2-1/0 Red
• #2-1/0 Black
• 1/0-3/0 Red
• 1/0-3/0 Black
• 3/0-4/0 Red
• 3/0-4/0 Black
