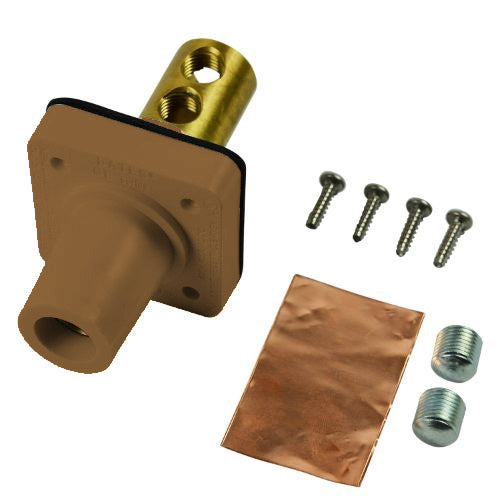

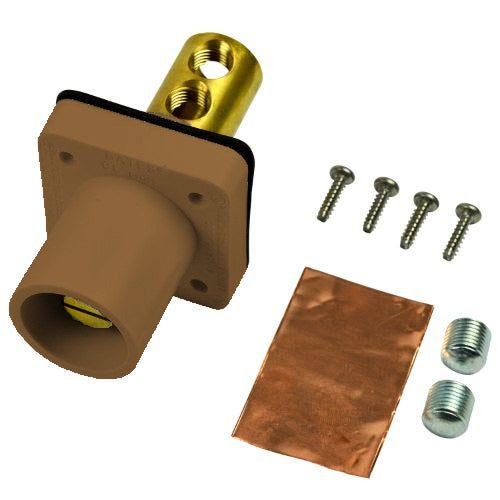

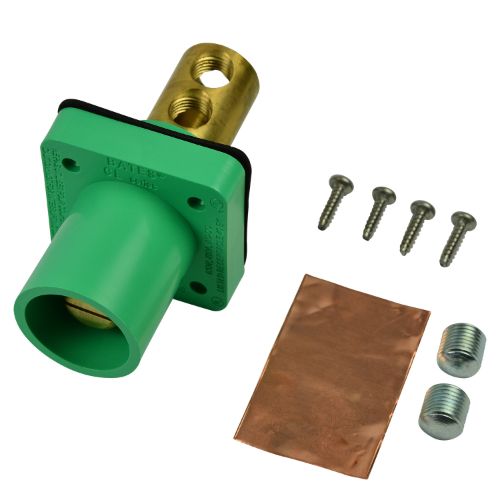

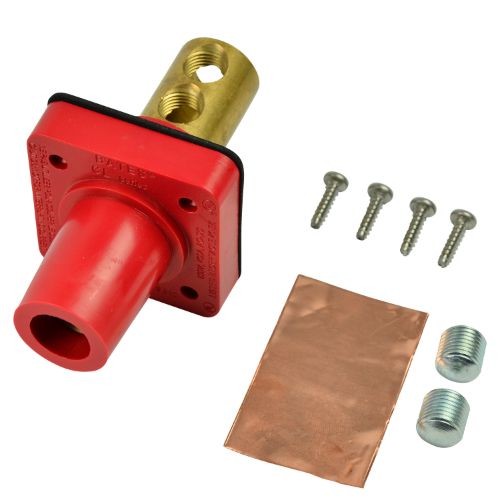

CL Series 400A 600V Panel Mount Connector - 2/0 AWG Copper Lug for Electrical Panels & Industrial Applications

Having a range of receptacle options is critical for any operation, especially heavy duty or industrial applications. Marinco offers this range of CL Male and Female Panel Mounts Receptacles (electrical sockets) that you can easily install for safe and reliable electrical power.
Features:

• Super Tough Nylon housing won’t chip or crack
• Resistant nylon housing withstands extreme temperatures and high impact conditions
• Electrical rating 400A 600V

• Option 1: Mount the flange of the panel receptacle with self-taping stainless screws: a quantity of (4) of #8 Plastite Self Threading Screw
• Option 2 (X): A drill out version for #10-32 nut and bolts to mount the flange of the panel receptacle

• Double set screws that have a locknut design which prevents them from loosening over time due to vibration. Can accommodate #2/0-4/0 AWG copper
• Fitted with solid brass contact for optimal heat dissipation
• The electrical wiring of these CL series is straightforward: Use #2 to 2/0 cable, copper.
• Strip wire jacket 1-3/4 inch.
• Wrap foil around strands, insert into contact and tighten setscrews (2) to 150 in.-lbs. of torque. Do not over tighten• Withstand approximately 40ft.-lbs of torque
