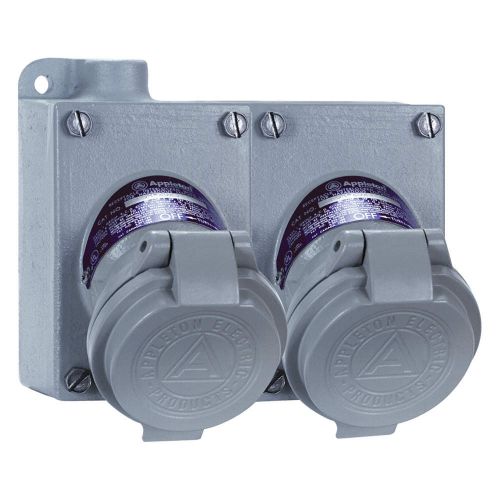

Contender CPS 20 Amp Pin and Sleeve Receptacle - 120/240VAC Industrial Grade Electrical Outlet - Factory Sealed for Safety - Perfect for Construction Sites, Manufacturing Plants & Heavy-Duty Equipment Power Supply

Benefits and Features

• Covers are UL Listed when used with Contender Series mounting bodies
• Plug mechanical cable clamps prevent strain on cables – they meet or exceed UL strain relief pull-out requirements
• Insulators provide superior dielectric and mechanical strength and lowest arc tracking
• Delayed action construction: insert plug partially rotate slide on front of receptacle and insert plug fully
• Factory sealed: external seals not required
• Plug and receptacles are supplied with pressure terminal connectors

• Hazardous Area Classification Class I, Division 1 and 2, Groups C, D
• Amperage: 20
• Voltage: 125-250 Vac, 125 Vac or 18 Vac
• Number of Poles: 3
• Number of Wires: 2
• Horsepower Ratings: 1
• Plug Cable Diameter: .538 – .639
• Mounting Box Entries: Dead-End or Feed-Thru
• Materials and Finishes Receptacles: covers, caps and ECP plugs are copper free (4/10 of 1% max.) aluminum with epoxy powder coat. Mounting box is malleable iron with triple-coat (1) zinc electroplate, (2) chromate and (3) epoxy powder coat finish. Insulating blocks are fiber glass
