Pilot Lighted 8300 Duplex Receptacle Outlet - 15A 125V Tamper Resistant Electrical Outlet with LED Indicator for Home, Office & Workshop Use

Get these Extra Heavy Duty Hospital Grade Receptacles from Leviton, featuring their innovative power on light indicator.

Application: The receptacles UL tested to ensure safe operating standards and mechanism in applications that require high-abuse tolerance including:

• Health care facilities like hospitals and clinics
• Manufacturing plants and industrial operations
• Schools and educative centers

 Receptacle Features:

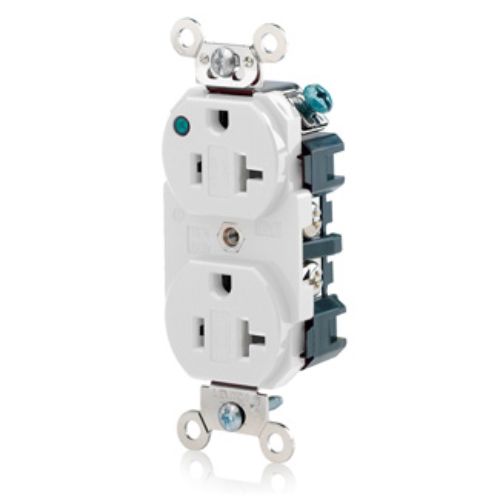

• The duplex receptacles feature a Power indication – a dot lens with a green LED indicator that will last for over a 100,000 hours of operation. The green light indicates properly function power
• Face made of impact resistant thermoplastic nylon that withstand knocks and abrasion
• Impact resistant cover is also smooth. It will not easily collect dirt making it easy to maintain and keep clean
• Straight blade for plug in receptacle

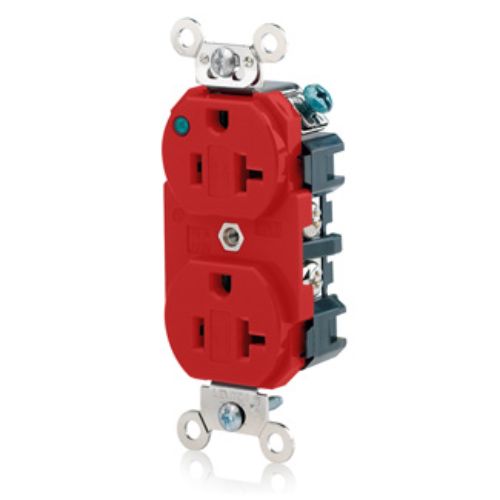

• Available in white, red, orange, ivory.

Termination and Grounding Features:

• The receptacle features back and side wire ground termination with back and side wiring options, specifically 8 hole feed through.
• The terminal screws are made of a high performance brass #10-32 that reduce conductor oxidation
• There is an apron barrier between terminal screw heads and metal box to prevent accidental contact
• V shaped serrated back wiring clamps for superior contact

Safety and Environmental Features:

• Meets all UL listed requirements, NEMA 5-20R rating, CSA certifications and is backed by 10 year warranty
• The flammability is rated V-2 per UL94
• The receptacle has optimal operating temperature range of -40°C to 60°C

Electrical Specifications

• AC Horsepower Rating: 1 HP
• Amperage: 20 A Current Limiting: Full Rated Current Dielectric
• Voltage: Withstands 2000V per UL498
• Grounding: Self-Grounding
• Pole: 2
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Voltage: 125 VAC
• Wire: 3

Mechanical Specifications Product ID:

• Markings are permanently marked on device Terminal Accom.: 14-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Back or Side Wire Torque
• Range: 14-16 inch pounds

Material Specifications Body Material:

• Nylon Clamp Nuts: Galvanized Steel Face
• Material: Nylon Ground
• Clips: Nickel-Plated Brass
• Grounding Screw: Plated Brass Line
• Contacts: Nickel-Plated Brass Triple-Wipe .040 Thick
• Strap Material: Nickel-Plated Brass
• Terminal Screws: Plated Brass

Standards and Certifications: ANSI: C-73; CSA C22.2 No. 42: File 152105; NEMA: WD-6; NOM: 057; UL Fed Spec WC-596: File E13399; UL498HG: File E13399
