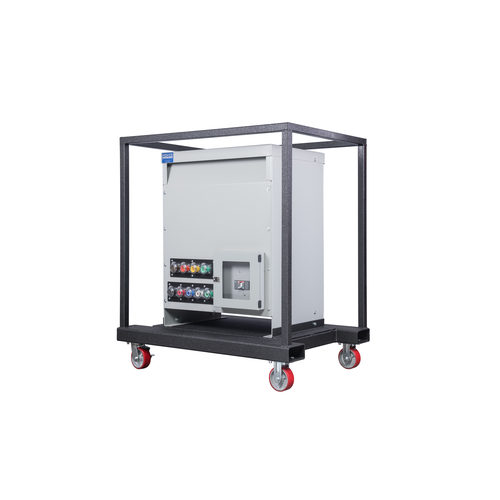

480V to 120/240V Step Down Transformer - 1 Phase 100KVA Power Distribution Unit - NEMA 3R Outdoor Rated - Ideal for Industrial Equipment, Commercial Buildings & Data Centers

Transformer distribution units provide a fast and easy way to connect a transformer to camlock power cables. Each transformer has series 16 male camlocks for the primary, and series 16 female camlocks for the secondary.
Specifications:

• 100KVA
• Single phase
• 480V primary
• 120/240V secondary
• 207 primary amps
• 415 secondary amps
• Nema 3R rated
• 300A primary circuit breaker protection (Optional)
• Steel frame with Armortek coating and forklift pockets (Optional)

Please Note: Power Assemblies products are built to order. Please check lead time under the specification tab to avoid any delays. Items will ship by your selected shipping method upon completion. Customers have the option to add an expedited fee of 25% if needed before the lead time period. This fee will not be charged online as we need prior confirmation from the production facility.
