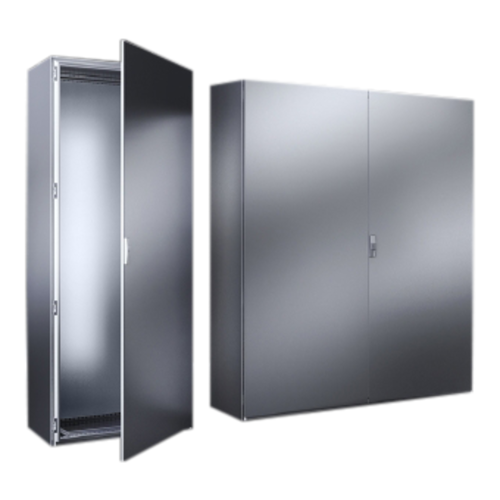

Rittal TS 8 Freestanding Enclosure - 316 Stainless Steel Cabinet for Industrial Equipment Protection | Weatherproof & Durable Electrical Enclosure for Outdoor & Harsh Environments

Rittal's TS 8 freestanding baying system are equipped with a mounting plate to keep the enclosure securely in place, especially when bayed to other units. They are made of 316 stainless steel and can be used in just about any environment, but ideally suited for harsh environments. This enclosure holds a UL Type 4X rating and has the greater advantage of being able to support expansion with lower labor and transportation costs due to it's lighter weight frame and ease of access. In addition to being easy to work with, it features 30% more mounting space that traditional similar cabinet types.

Features:

• 4-point latching system, foamed in place gasket, and padlockable handle for protection against the elements and added security
• Equipped with spring-loaded quick release hinges to remove the entire door and ease installation
• Floor panel is also internally removable to further simplify conduit andwiring installation

• Door: Stainless steel 1.4404 (AISI 316L) 2.0 mm exterior brushed
• Gland plate: Stainless steel 1.4404 (AISI 316L) 2.5 mm
• Rear panel: Stainless steel 1.4404 (AISI 316L) 1.5 mm exterior brushed
• Roof: Stainless steel 1.4404 (AISI 316L) 1.5 mm exterior brushed

• 78.74" x 31.50" x 23.62"
• 78.74" x 31.50" x 31.50"
• 70.87" x 31.50" x 19.69"
