17 Series Cam Type Detachable Plug with Double Set Screw Termination - 350-500MCM, 600A Max - Heavy Duty Electrical Connector for Industrial Equipment & Power Distribution

Application
The 17 Series Taper Nose connectors withstand gruelling, heavy-duty industrial use. Applications include generator test stations, water purification plants, electro-chemical machining equipment and other general industrial uses.

Benefits and Features


• They are insulated for water tightness and safety.
• They allow you to quickly connect or disconnect equipment
• They are inter-mate able and compatible with other competitive brand cam type products (can be retrofitted)
• They are durable – shatter and crack proof because of the santoprene TPV they are made off
• Self-compensating for wear and use – the male contact has a slit to provide for spring action during longer use
• Vibration proof connection with high conductivity - will not vibrate or loosen, ensuring maximum efficiency
• UL listed

Electrical Specifications


• Max. Amperage: 600 Amp
• Max. Voltage: 600 Volt
• Cable Range: 350-500MCM AWG
• Connection Type: Double Set Screw

Material Specifications


• Contact Material: Brass Sleeve
• Material: Santoprene TPV
• Strain Relief: Copper Wire

Available Options

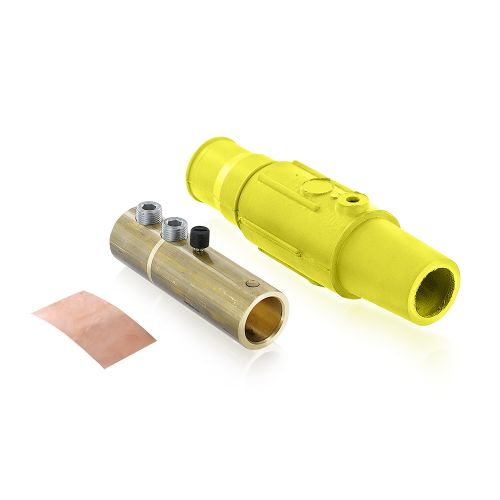

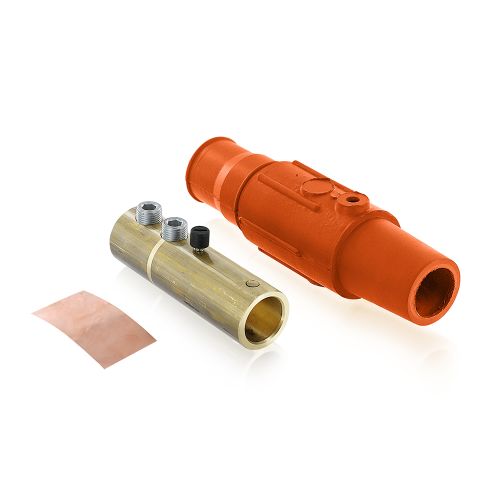

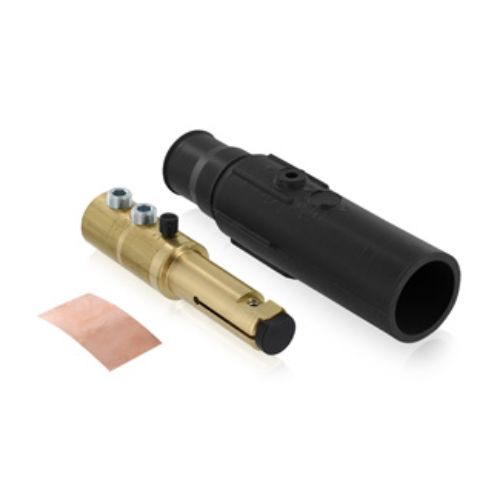

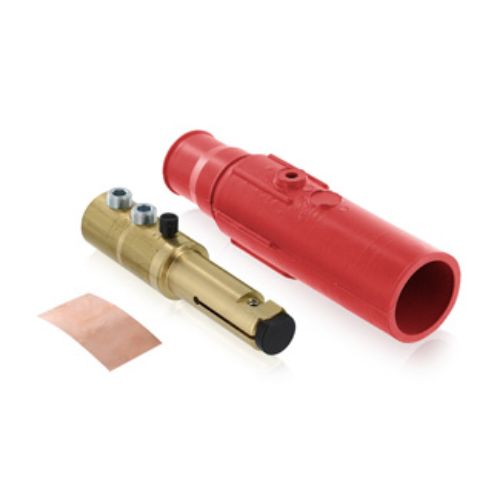

• 17D22 - Male, double set screw available in color coded range
• 17D24 - Female, double set screw available in color coded range
